Description

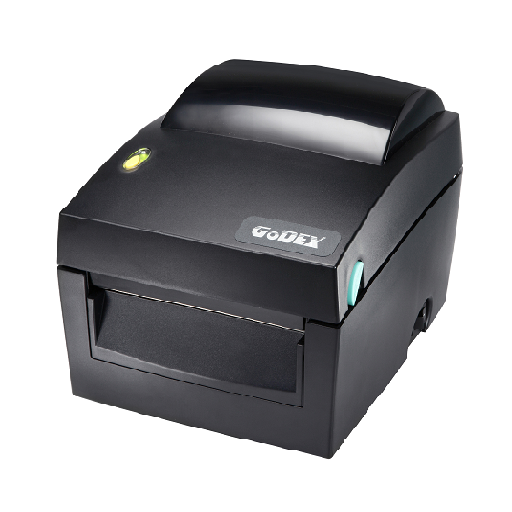

DT4x / Desktop

RT700i / Desktop

EZ2350i / Industrial

Print Method

Direct Thermal

Direct Thermal / Thermal Transfer

Direct Thermal / Thermal Transfer

Resolution

203 dpi (8 dots/mm)

203 dpi (8 dots/mm)

300 dpi (12 dots/mm)

Print Speed

7 IPS (102 mm/s)

Up to 7 IPS (177 mm/s)

5 IPS (127 mm/s)

Print Width

4.25” (108 mm)

4.25" (108 mm)

4.09" (104 mm)

Print Length

Min. 0.16” (4 mm)**; Max. 68” (1727 mm)

Min. 0.16” (4 mm); Max. 68” (1727 mm)

Min. 0.16” (4 mm); Max. 45” (1143 mm)

Processor

32 Bit RISC CPU

32 Bit RISC CPU

32 Bit RISC CPU

Memory

8MB Flash (4MB for user storage) / 16MB SDRAM

8MB Flash (4MB for user storage) / 16MB SDRAM

8MB Flash (4MB for user storage) / 16MB SDRAM

Sensor Type

Fixed center aligned transmissive sensor with left adjustable reflective sensor

Fixed center aligned transmissive sensor with a full range adjustable reflective sensor

Adjustable reflective sensor and transmissive sensor, left aligned

Media

Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming

Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.

Thickness: 0.0024” (0.06 mm) Min. - 0.008” (0.20 mm) Max.

Label roll diameter: Max. 5” (127 mm)

Core diameter: 1”, 1.5” (25.4 mm, 38.1 mm)

Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming

Width: Min. 1” (25.4 mm) – Max. 4.64” (118 mm)

Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.2 mm) Max.

Label roll diameter: Max. 5” (127 mm)

Core diameter: 1”, 1.5” (25,4 mm, 38,1 mm)

Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming

Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.

Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max.

Label roll diameter: Max. 8” (203.2 mm) , Max. 6” (152.4 mm)

Core diameter: 3”, 1.5” (76,2 mm, 38,1 mm)

Ribbon

Types: Wax, wax/resin, resin

Length: 981’ (300 m)

Width: 1.18” (30 mm) Min. - 4.33” (110 mm) Max.

Ribbon roll diameter.: 2.67“ (68 mm)

Core diameter: 1” (25.4 mm)

Types: Wax, wax/resin, resin

Length: 1471’ (450 m)

Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max

Ribbon roll diameter.: 2.99“ (76 mm)

Core diameter: 1” (25.4 mm)

Printer Language

EZPL, GEPL, GZPL auto switch

EZPL , GEPL, GZPL auto switch

EZPL , GEPL, GZPL auto switch

Software

Label design software: QLabel-IV, GoLabel (for EZPL only)

Label design software: GoLabel (for EZPL only)

Label design software: GoLabel (for EZPL only)

Interfaces

USB 2.0 port

Serial port: RS-232 (DB-9)

Ethernet port

USB 2.0 port

Serial port: RS-232 (DB-9)

Ethernet 10/100 Mbps

Color TFT LCD with navigation button

USB 2.0 port

Serial port: RS-232 (DB-9)

Ethernet 10/100 Mbps

USB Host

Control Panel

One Tri-color LED: Power (Green, Orange and Red)

Function Key: FEED

Power on/off button

Calibration button

USB Host

Color TFT LCD with navigation button

Power on/off button

Calibration button

Real Time Clock

Standard

Standard

Standard

Power

Auto Switching 100-240VAC, 50-60Hz

Auto Switching 100-240VAC, 50-60Hz

Auto Switching 100-240VAC, 50-60Hz

Environment

Operation temperature: 41°F to 104°F (5°C to 40°C). Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity

Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing.

Agency Approvals

CE(EMC), FCC Class A, CB, CCC

CE(EMC), FCC Class A, CB, CCC, cUL

CE(EMC), FCC Class A, CB, cUL, CCC

Dimension

Length: 8.58” (218 mm)

Height: 6.53” (166 mm)

Width: 6.61” (168 mm)

Length: 11.0” (280 mm)

Height: 7.3” (186 mm)

Width: 8.3” (210 mm)

Length: 20.15” (512 mm)

Height: 11.45” (291 mm)

Width: 10.78” (274 mm)

Weight

3.3 lbs (1.5Kg), excluding consumables

6.6 lbs (3.0 Kg), excluding consumables

33 lbs (15Kg), excluding consumables

Options

Cutter Module

Label Dispenser

External label roll holder for 10” (250 mm) O.D. label rolls

External label rewinder

Bluetooth module

Guillotine Cutter

Label Dispenser

External label roll holder for 10” (250 mm) O.D. label rolls

External label rewinder

Cutter Module

Label Dispenser + Internal Rewinder

Parallel port adapter module (Centronic female 36-pin)

External label roll holder for 10” (250 mm) O.D. label rolls

External label rewinder
