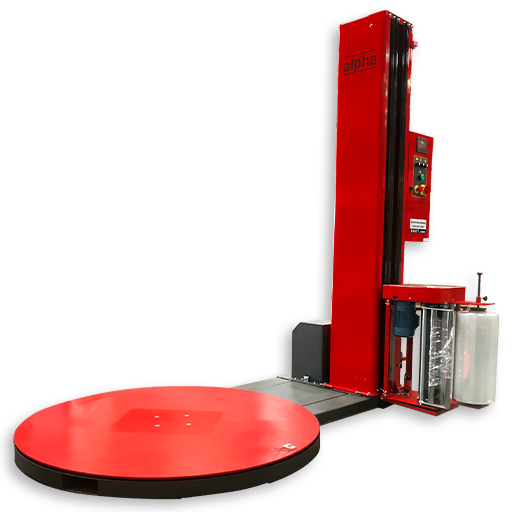

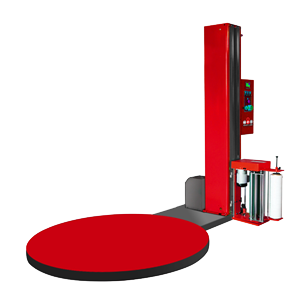

Stretch Wrap Machine
Stretch Wrap Machine
Stretch Wrap Machine
As Low As

Wraps light loads without damaging packaging, pre-stretches film 120% to 300% with a push of a button. Side mounted carriage with fast film feed. Accessible forklift design for easy positioning & setup.

Optional Ramp for Stretch Wrap Machines (Click To See the Stretch Wrap Ramp)

Stretch Wrap Machine

Model # Base Size Height Note Price Each Qty
(Each)
1 2+
SWM-82120 58"(dia) x 3" 82" Film Stretch: Up to 120%, Load/Hour: 30-40 $ 6,500 $ 5,850
SWM-82220 58"(dia) x 3" 82" Film Stretch: Up to 220%, Load/Hour: 30-40 7,300 7,180
SWM-82300 58"(dia) x 3" 82" Film Stretch: Up to 300%, Load/Hour: 30-40 8,350 8,180
SWM-82300F 58"(dia) x 3" 82" Film Stretch: Up to 300%, Load/Hour: 30-50 9,900 9,600
SWM-98300F 58"(dia) x 3" 98" Film Stretch: Up to 300%, Load/Hour: 30-50 11,500 10,380


SWM-82120

SWM-82220

SWM-82300

SWM-82300F

Film Stretch:

120%

220%

300%

300%

Load / Hour:

30-40

30-40

30-40

30-50

Load capacity:

4,000 LBS

4,000 LBS

5,000 LBS

5,000 LBS

Turntable size:

58 dia. x 3"H

58 dia. x 3"H

58 dia. x 3"H

58 dia. x 3"H

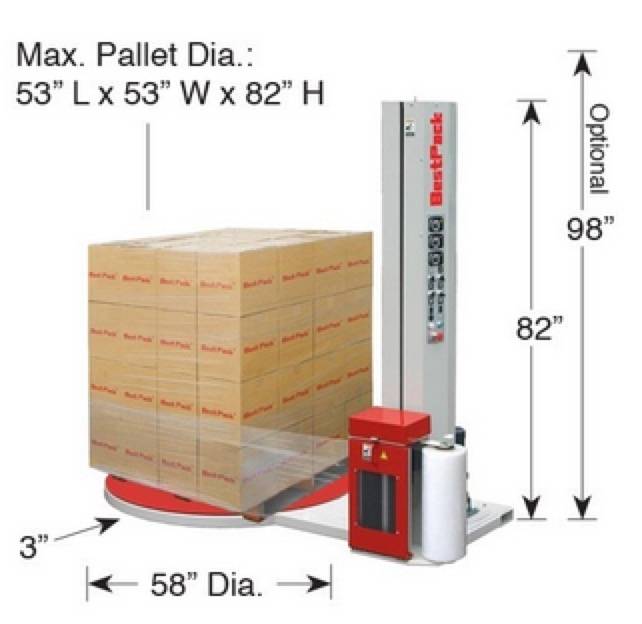

Max. Pallet Dia.:

53" x 53" x 82"

53” x 53” x 82"

53” x 53” x 82"

53” x 53” x 82"

Wrapping Height:

82"

82"

82"

82"

Optional Height:

98"

98"

98"

98"

Connectivity:

PLC port

PLC port

PLC port

PLC port

Film Delivery:

Manual Clutch

Roller Pre-Stretch

Motorized Pre-Stretch

Automatic film break or empty roll detection

Corner compensation with dancing bar and analog control

Film force to load -

variable electronic control

Film force release for easy pull at start of cycle

Motorized Pre-Stretch

Automatic film break or empty roll detection

Corner compensation with dancing bar and analog control

Film force to load -

variable electronic control

Film force release for easy pull at start of cycle

Wrap Pattern:

Spiral UP and Down Wrap Pattern

Top and Bottom Wrap Selector

Manual Carriage Up/Down Switch

Combination Top/Bottom Wrap Counter (1-3 Wraps)

Spiral UP and Down Wrap Pattern

Top and Bottom Wrap Selector

Manual Carriage Up/Down Switch

Combination Top/Bottom Wrap Counter (1-3 Wraps)

Spiral UP and Down Wrap Pattern

Top and Bottom Wrap Selector

Manual Carriage Up/Down Switch

Combination Top/Bottom Wrap Counter (1-3 Wraps)

Spiral UP and Down Wrap Pattern and UP Only Pattern

Top and Bottom Wrap Selector

Manual Carriage Up/Down Switch

Independent Top/Bottom Wrap Counters (0-9 Wraps)

Manual controlled reinforce wrap (repetitive wrapping)
